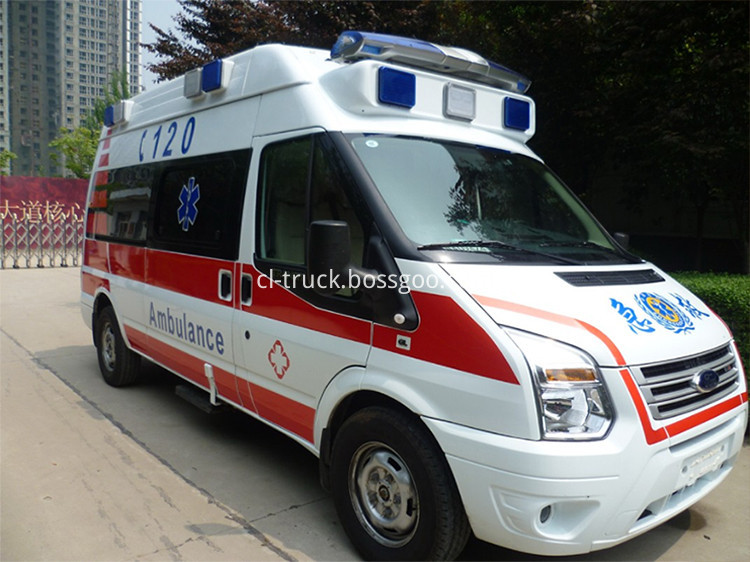

FORD 4x2 used ambulance

  • FORD 4x2 used ambulance
  • FORD 4x2 used ambulance
  • FORD 4x2 used ambulance
  • FORD 4x2 used ambulance

FORD 4x2 used ambulance

    Payment Type: T/T,Money Gram,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Bag/Bags
    Delivery Time: 45 Days
    Packaging: Nude Cargo
    Productivity: 3000 sets / year
    Brand: CLW
    Transportation: Ocean
    Place of Origin: Suizhou, Hubei, China
    Supply Ability: 300 sets / month
    Certificate: ISO9001/CCC

Basic Info

Model No.: CLW5030XJHJ5

Kind: Rescue Ambulance

Certification: CCC, ISO9000

Transmission Type: Manual

Fuel: Diesel

Emission Standard: Euro 3

Length: 3-8m

Medical Equipment: With Medical Equipment

Horsepower: 100-160hp

Axle: Single

Engine Type: 4 Stroke

Condition: New

Outline Dimension: 5000x2080x2590mm

Product Description

Medical Ambulance is mainly used for transporting wounded of scene and taking first-aid. One doctor and four supine wounded, or one supine and three seated wounded, or six seated wounded can carried in ambulance. Stretcher slide is assembled, which makes it easier for wounded to get on and off.

Equipment canboth work independently and rescue combinational. The equipment with abilities of barrier breaking, rescuing, man-machine coordination, and self-protection can work cooperatively through equipment combination and matching, to supply different solving projects for disaster rescue of different type and size.

Product Description

A

Technical specs of vehicle


Dimensions and masses

Wheelbase (mm):3750

Wheel tread (mm): 1740/ 1704 (front/rear)

Minimum ground clearance (mm):195

Turning diameter(m):13.3

Overall dimensions (mm):5780×2000×2680

Dimension of Patient's compartment (mm):3200×1700×1830

Complete vehicle curb mass:(kg):2720

GVW (kg):3600

Number of crew: 8 persons

Engine:DURATORQ4D244H

Fuel type: diesel

Fuel consumption:10L/100km

Working manner: in-line ,4 cylinders, Turbocharged inter-cooled, high pressure common rail diesel engine

Displacement (L.):2402

Emission standard:Euro IV

Maximum power:92kw

Max. torque: 345N.m

Gearbox:MT-82 6 speed, mechanical

Chassis :JX6581TA-H4

Front overhang:McPherson independent suspension

Rear overhang:Not independent suspension steel spring, hydraulic shock absorber

Brake: four wheels disc brake, power-assisted brake

Max. speed (Km/h):140

Steering system: gear, rack power-assisted steering

Tire:215/75R16C

Fuel tank capacity(L):70

B

Standard configuration of vehicle

1

Manual side mirror

2

Power window

3

CD player

4

Hand-free Intercom system between driver's cab and Patient's compartment

5

3 seats in driver's cab

6

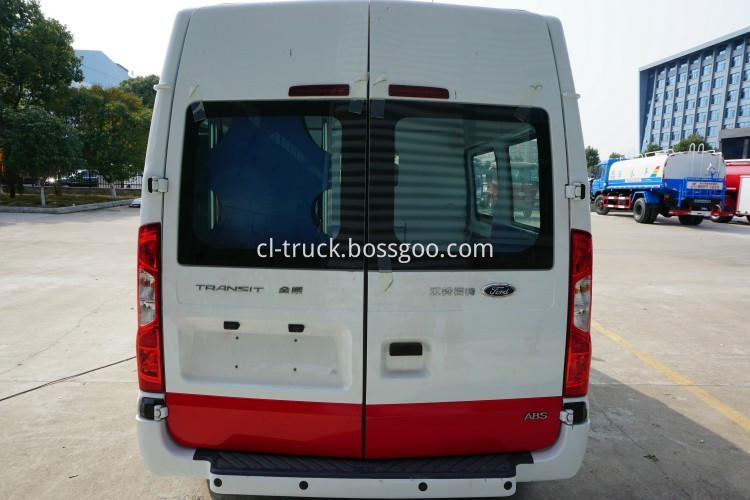

Double open rear door

7

Foot pedal in rear door

Air conditioner and lighting system

1

the original air conditioning is installed in driver's cab

2

the original air conditioning is installed in Patient's compartment

3

Exhaust system is installed on Patient's compartment roof

2

2 illumination lights for right side and left side of vehicle outside

3

1 illumination light rear side of vehicle outside

4

illumination light front side of vehicle outside

5

LED illumination light in Patient's compartment

6

spotlight lights inner roof of Patient's compartment

7

Ultraviolet radiation disinfector light

Central power supply distribution system

1

Automatic charging system

2

10m mobile cable

3

12V outlets in Patient's compartment

4

220V outlets in Patient's compartment

5

230V/16A waterproof outside outlet with protection cover

6

12V DC power-supply system

7

Intelligent inverted power supply system(12V -220V)

8

Multi-function control system

Emergency alarm system

1

Control plate of siren and alarm lamp mounted in driver's cab

2

Adjustable volume alarm apparatus

3

100W loud speaker

4

Blue Flashing alarm light bar mounted on the front roof of vehicle

5

blue flashing alarm lamps four sides of vehicle outside roof

F

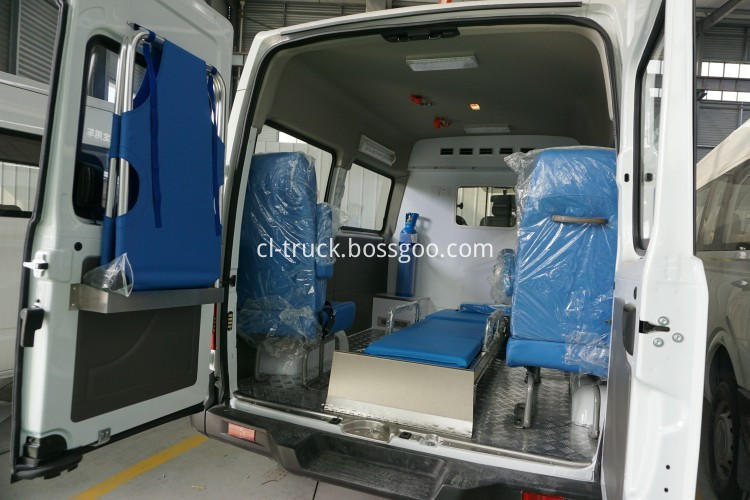

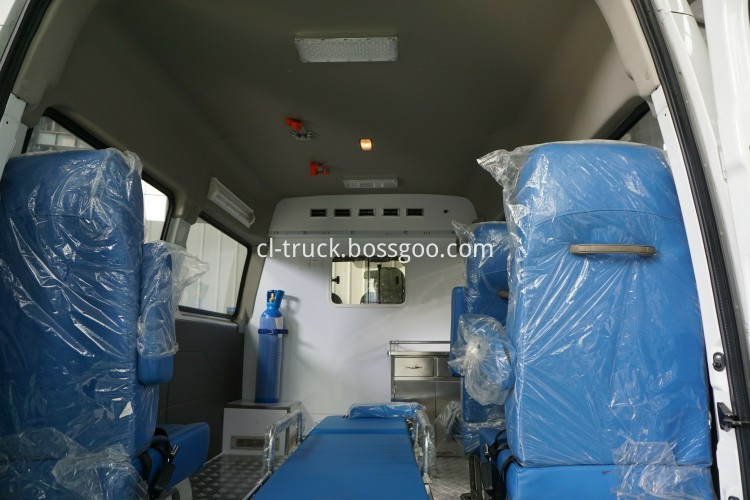

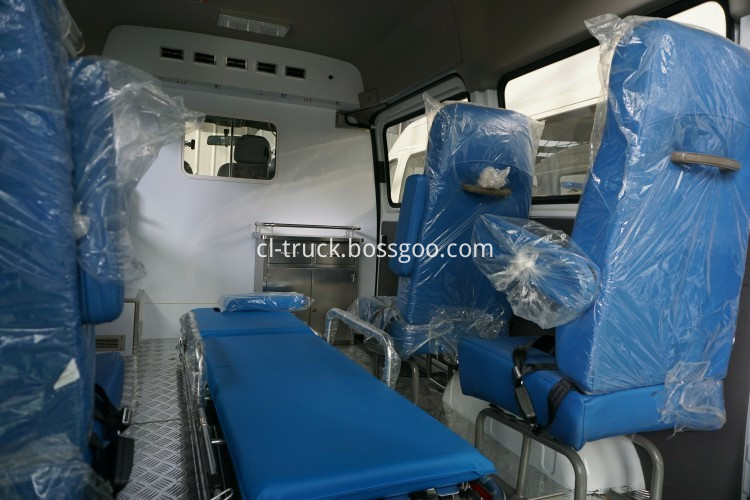

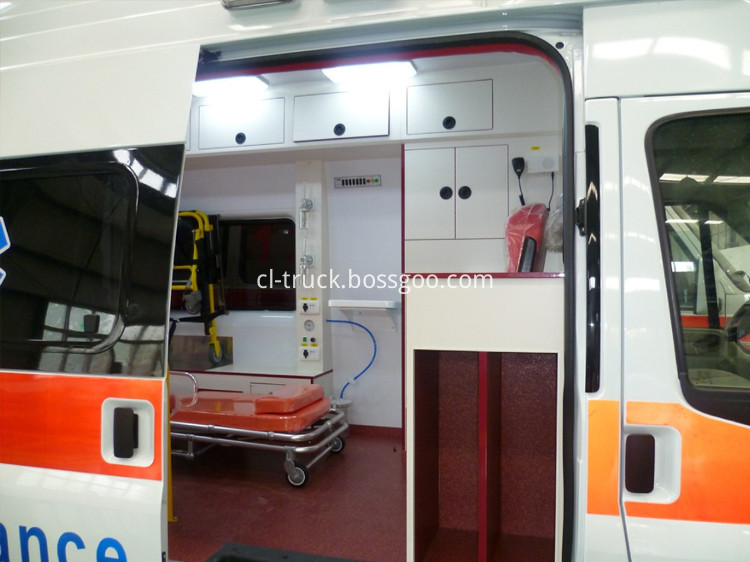

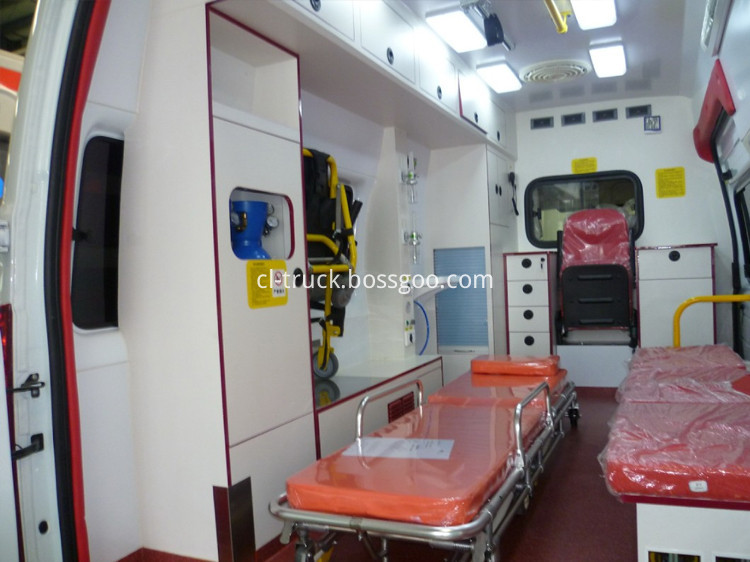

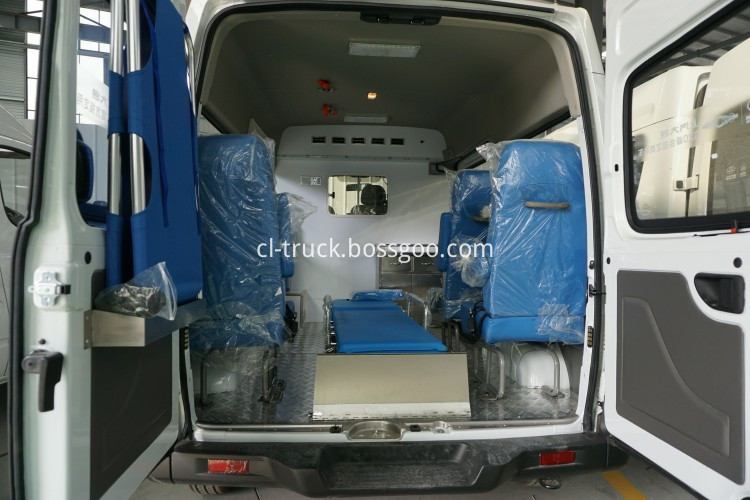

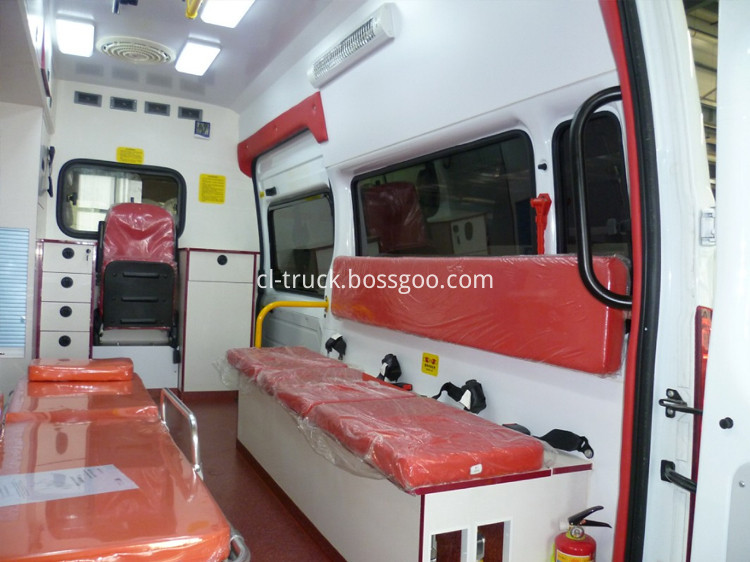

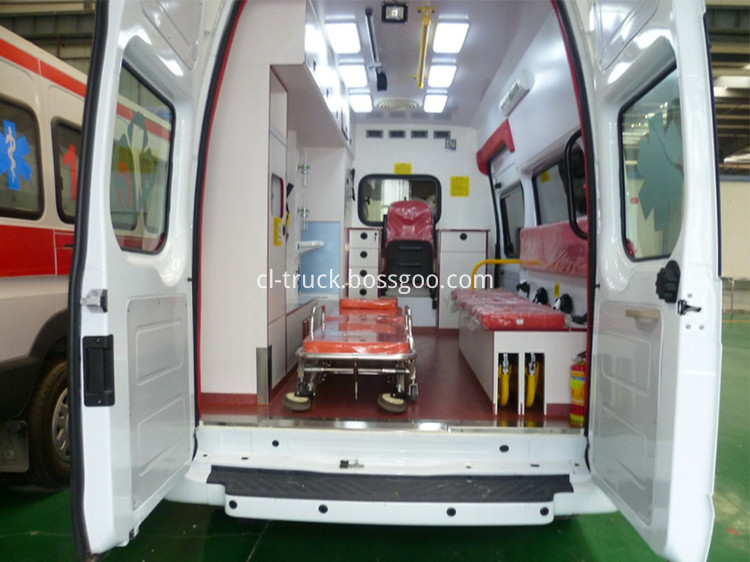

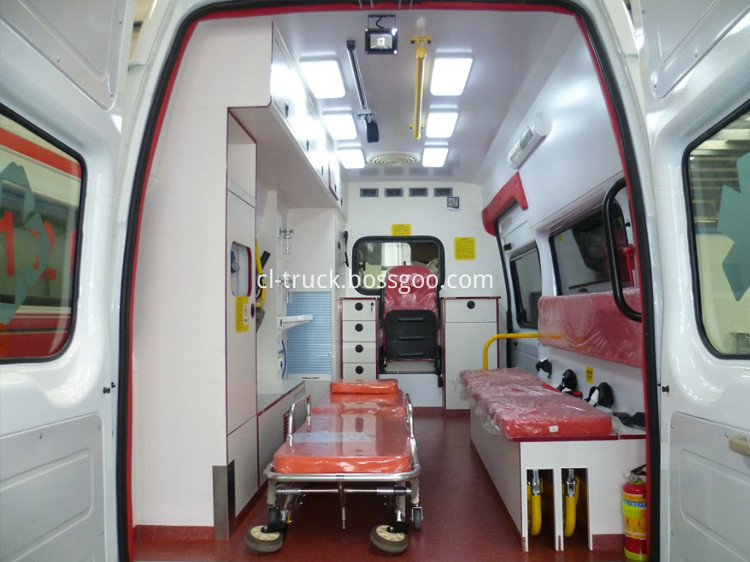

Patient's compartment

1

Partition wall between driver's cab and Patient's compartment , a glass window in wall to make observation

2

A foldable doctor seat (with safe belt) mounted to floor near to compartment wall

3

Long bench one piece (suitable for 3 people) with safe belts, mounted in right side of Patient's compartment

4

Scoop stretcher storage cabinet under bench bed

5

Oxygen bottle in steel, 3 cubic meters (10L×2) ,mounted in left side of vehicle

6

Oxygen terminal (with oxygen interface and humidification bottle)

7

Oxygen reducing valve

8

composite material interior decoration in patient compartment

9

Medicine cabinet one piece made of high polymer material, mounted in left side of Patient's compartment

10

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

11

perimeter embossing edge wrapping of Patient's compartment , dust-proof, anti-skidding, washable

12

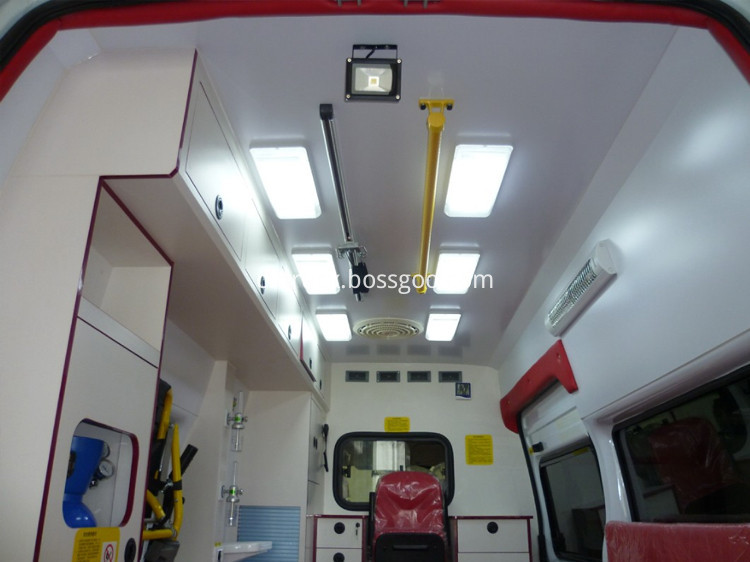

Multi-functional interior roof in Patient's compartment , with handrail, transfusion hanging bracket

13

Ventilation fan mounted in the interior roof of Patient's compartment

14

Medicine and equipments storage cabinet under partition wall

15

Strong blue or red reflective strip in waist of body

16

Storage cabinet mounted in left front side of patient compartment

17

Medical equipment cabinet in left side of Patient's compartment

18

220V outside power supply

19

Collision avoidance head restraint mounted in Patient's compartment

20

Mobile Self-lifting stretcher

21

Adjustable shovel Stretcher

Standard Configuration

1) Anti-corrosion, anti-slip, anti-static medical floor: 1set

2) Alarm lamp and warning system: 1set

3) Heating system: 1set

4) Air conditioning system: 1set

5) Integrated interior decoration: 1set

6) Ventilation fan system: 1set

7) Multi-functional top

8) Partition wall (with transparent windows): 1set

9) Oxygen supply system: 1set (10LX2 oxygen bottle)

10) Inverter: 1set

11) Power socket: 1set

12) External power supply: 1set

13) Ultraviolet radiation disinfector system: 1set

14) Lighting system in patient room: 1set

15) Hands-free intercom system: 1set

16) Transfusion system: 1set

17) Medicine and instrument cabinet: 1set

18) Patient bench bed: 1set

19) Multi-functional operation panel: 1set

20) Doctor chair: 1set

21) Anti-Collision Head restrain: 1set

22) Automatic loading-and-unloading stretcher: 1set

23) Scalable scoop stretcher: 1set

24) Fire extinguisher: 1set

25) Waste can: 1set

26) Mobile cable: 1set

27) Outside marking: 1set
