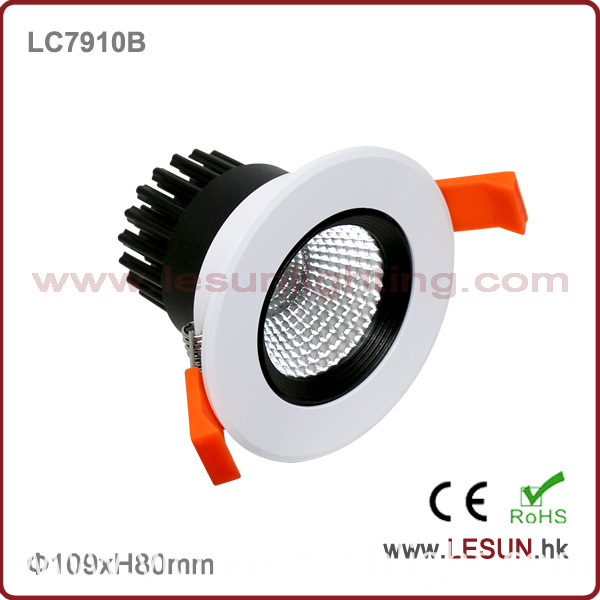

High Quality 10W Recessed COB Ceiling Downlights LC7910b

Model NO.: LC7910B Material: Aluminum Installation: Embedded Warranty Period: 2 years Certification: CE, RoHS Model: LC7906b Power: 10W Size: Dia109*H80mm Lumen: 600-800lm CRI: More Than 80 Trademark: LESUN Origin: China Light Source: LED Source Number: Single Plug Lamp Installation: Screw Holder Application: Home Furnishing, Engineering, Commerical Lighting/Fashion Shop Voltage: 100-240V Cct: 3000-6000k Cut Hole: Dia 95mm Input: 100-240VAC Surface Color: White Chip: Osram Specification: CE and Rohs HS Code: 94054090 High quality 10W recessed cob ceiling downlights LC7910B



Light source: COB Power: 10W CCT:3000-6000K Beam Angle: 15°/  25°   Installation hole: dia95mm Color rendering index: Ra 80
 Lumen:600-800lm Surface color:white

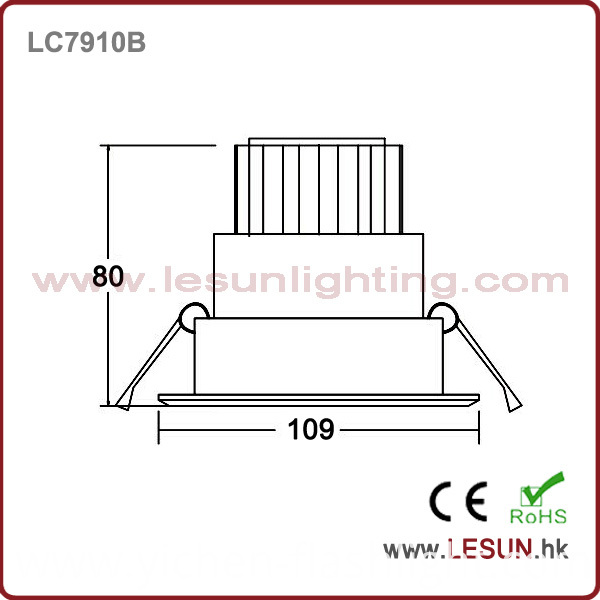

Dimention:dia 109*H80mm
Descriptions:
> High brightness LED Ceiling Light
> Adjustable type
> Recess mounted
> Cut hole: 110mm
> With LED lens, which supply the 15 or 30degree angle beam light
>Various LED color are available(warm white, cool white)
> Cool operating temperature
> Order LED controller separately
> Non-dimmable
> Easy plug connector are supplied if requested
Applications:
>Office buildings, Supermarkets, Emporiums
>Hotels and restaurants, Decorating lamp
>Running lamp, Exhibition hall, Building outline
>Parks and palace decoration


25W recessed led ceiling light packing & details:
Packing detail: Carton box
Delivery detail: Within 3-5 working days after receive the payment

30W recessed led ceiling light features:
1) Adopt high brightness and low light decline led;
2) Wide voltage and constant current design;
3) Well-design of thermal structure;
4) 60-80% energy saving than traditional lamps;
5) Long lifetime, over 5, 0000 hours 6) Warranty quality: 2 years
7) Instant start, no flashing;
8) Pro-environment, no UV or other radiation;
9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body



Applications:

1. Living room, bedroom, kitchen, washroom;
2. School, university, hospital, hotel;
3. Conference, meeting room, show room, showcase;
4. Commercial complexes;
5. Factory, plant, warehouse, office;
6. Supermarket, department store
7. Jewelry store, hotel and fashion shop etc



Advantage:

1. High light transmittance lens, wonderful show effect

2. Perfect design with full application of air convection principle, good heat dissipation

3. Exquisite frosted surface, long durable

4. Competive price, good looking

5. Enviroment protecting

6. Energy saving

Insturctions:

1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED Driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.


Good servious:

1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information

Model	LC7910B
Power	10W
Light source	cob led
CCT	3000-6000K(warm white/natual white/cool white)
Beam angel	25° /   15°
Size	dia109*H80mm
Cut hole	dia 95mm
Surface color	white

Contact us if you need more details on LED Downlights. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED Ceiling Light、COB Downlight. If these products fail to match your need, please contact us and we would like to provide relevant information.
