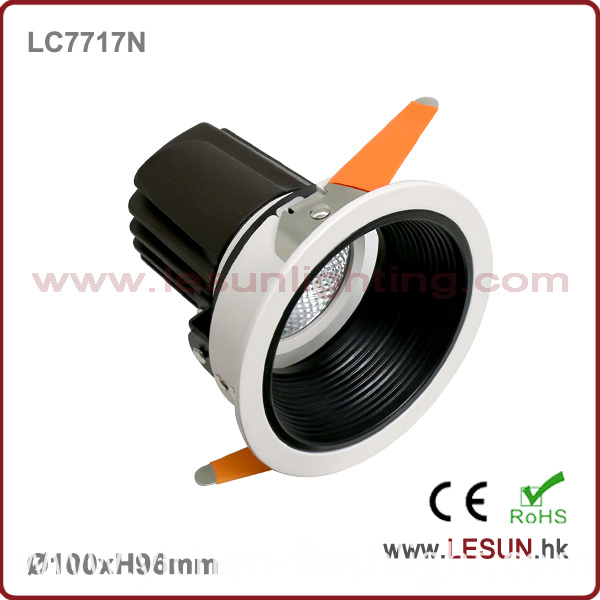

Rotating Recessed 8W COB LED Ceiling Downlight LC7717n

Productivity:
1000PCS/Day
Place of Origin:
China
Supply Ability:
1000PCS/Day
Certificate:
CE, RoHS
  • Ms. Amanda Ye Leave Messages

Basic Info

Model No.:  LC7717N

Product Description

Model NO.: LC7717N Material: Aluminum Installation: Embedded Warranty Period: 2 years Certification: CE, RoHS Applicable Places: Hotel, Fashion Shop, Living Room Cct: 3000-6000k Cut Hole: 90mm Input: 100-240VAC Surface Color: White Chip: Osram Specification: CE and Rohs HS Code: 94054090 Light Source: COB Source Number: Single Plug Lamp Installation: Screw Holder Application: Home Furnishing, Engineering, Commerical Lighting/Fashion Shop Voltage: 100-240V Model: LC7717n Power: 8W Size: Dia100*H96mm Lumen: 480lm CRI: More Than 80 Trademark: LESUN Origin: China Rotating recessed 8W cob led ceiling downlight LC7717N



Light source: COB Power: 8W CCT:3000-6000K Beam Angle: 15°/  24°   Installation hole: dia90mm Color rendering index: Ra 80
 Lumen:480lm Surface color:white
Dimention:dia 100*H96mm
Descriptions:
> High brightness LED Ceiling Light
> Adjustable type
> Recess mounted
> Cut hole: 70mm
> With LED lens, which supply the 15 or 30degree angle beam light
>Various LED color are available(warm white, cool white)
> Cool operating temperature
> Order LED controller separately
> Non-dimmable
> Easy plug connector are supplied if requested
Applications:
>Office buildings, Supermarkets, Emporiums
>Hotels and restaurants, Decorating lamp
>Running lamp, Exhibition hall, Building outline
>Parks and palace decoration


packing & details:
Packing detail: Carton box
Delivery detail: Within 3-5 working days after receive the payment

30W recessed led ceiling light features:
1) Adopt high brightness and low light decline led;
2) Wide voltage and constant current design;
3) Well-design of thermal structure;
4) 60-80% energy saving than traditional lamps;
5) Long lifetime, over 5, 0000 hours 6) Warranty quality: 2 years
7) Instant start, no flashing;
8) Pro-environment, no UV or other radiation;
9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body


Rotating Recessed 8W COB LED Ceiling Downlight LC7717n
Applications:

1. Living room, bedroom, kitchen, washroom;
2. School, university, hospital, hotel;
3. Conference, meeting room, show room, showcase;
4. Commercial complexes;
5. Factory, plant, warehouse, office;
6. Supermarket, department store
7. Jewelry store, hotel and fashion shop etc
Rotating Recessed 8W COB LED Ceiling Downlight LC7717n
Rotating Recessed 8W COB LED Ceiling Downlight LC7717n

Advantage:

1. High light transmittance lens, wonderful show effect

2. Perfect design with full application of air convection principle, good heat dissipation

3. Exquisite frosted surface, long durable

4. Competive price, good looking

5. Enviroment protecting

6. Energy saving

Insturctions:

1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.


Good servious:

1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information
  Model  LC7717N
  Power 8W
  Light source cob led
  CCT 3000-6000K(warm white/natual white/cool white)
  Beam angel       25° /   15°

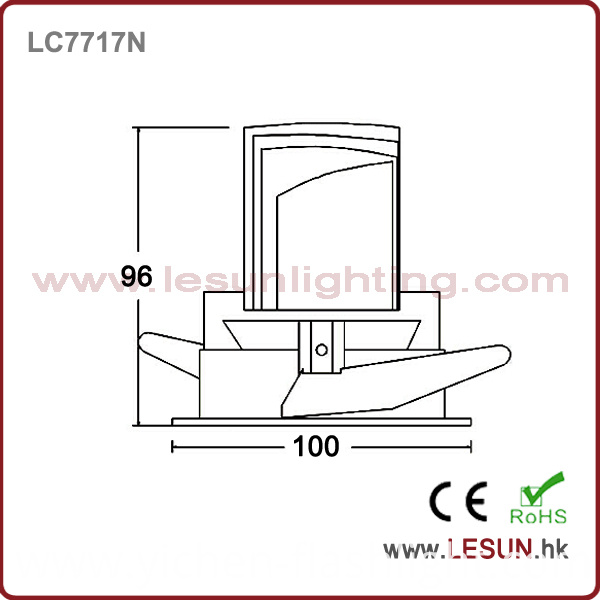

Size dia100*96mmH
Cut hole dia 90mm
  Surface color white

Contact us if you need more details on LED Down Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED Ceiling Light、COB Downlight. If these products fail to match your need, please contact us and we would like to provide relevant information.
