LED Light Security Automatic Retractable Parking Bollards

LED Light Security Automatic Retractable Parking Bollards

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 7 Days
    Packaging: plywood packing box
    Productivity: 3000 pcs
    Brand: RS Security
    Transportation: Ocean,Land,Air
    Place of Origin: Shenzhen city, Guangdong province, China
    Supply Ability: 500pcs/month
    Certificate: CE,ROHS,FCC
    Port: Shenzhen

Basic Info

Model No.: RS 1001

Working Temperature: -20ºC~+70ºC

Protection Grade: IP68(waterproof、dampproof、dampproof)

Power Supply: 220V/380V

Material: 304 Stainless Steel

Diameter: 168/219/273mm

Weight: 110KG

Product Description

LED Light Security Automatic Retractable Parking Bollards

Hydraulic bollards system is designed to conrol access. Rising bollards are used to secure sensitive areas from driving in, attack, or to enforce traffic Rules.
The automatic Bollard is an electric-hydraulic mechanically operated retractable bollard system.The system can be quickly and easily operated. It is suitable for both security and access control

Technician data:

1 control system Hydraulic control system
2 Pressure-bearing ±100 ton vehichel
3 Anti-collision grade K4
4 Protection grade IP68(waterproof.dampproof.dampproof).
5 Power supply 380V
6 Power(w) 2.7KW
7 rise time 5~10S(adjustable)
8 Drop time 5~10S(adjustable)
9 Work temperature -25℃~75℃
10 Storage condition -10℃~75℃.
11 Color stainless steel(default),multiple colors reflection film/led indication (optional)
12 Material 304 stainless steel

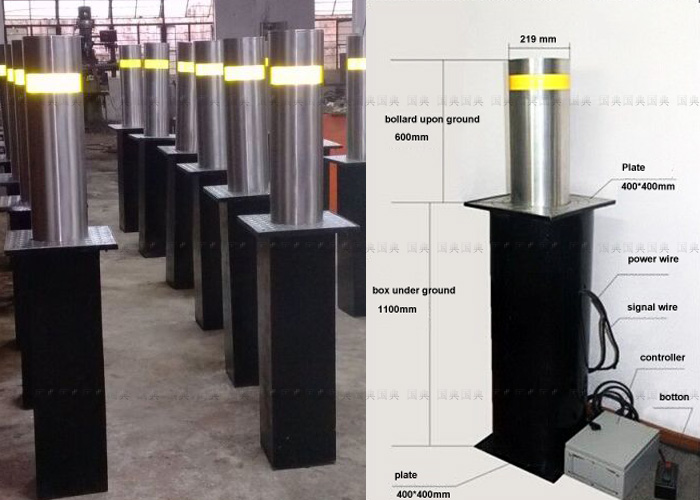

13 Bollard size(mm) L400×W400×H910, rise/drop height: 600mm,panel size:600x600mm.
14 Bollard diameter(mm) 168\219(default)\275mm;thickness: 6mm(8-10-12mm optional).
15 Control ways ( optional) remote control, manual operation, rfid card, bluetooth card,
16 Weight 110KG

Feacture:


1,No need lay underground hydraulic pipeline. Easy installation. Low construction cost
2,Because of Have no hydraulic pipeline. It only need inspect independent bollard during maintenance.
it is easy to take out the control box from earth .Easy repair and maintenance
System takes of micro motor and a integration ports connect gear pump and oil box . Then use a all in
one hydraulic cylinder to built a complete micro hydraulic .use structure parts to install this system into
roadblock inner.In this way complete electronic energy >mechanical energy>hydraulic energy conversation process .totally reach micro .electronic.;liquidize integration
Product features :
(1) Emergency release ;
(2) There is no limited on distance between Independent bollard and control system
(3)Can make sure more than one bollard synchronous raise and fall
(4)Can takes of short/remote control and short swing card or long range radio swing card control .
(5)Can connect with PC reach sequencing control.Suitable for high frequency high safety requirement
place

Control method:

Hydraulic Parking Bollards Remote Control remote control

Security Automatic Bollards Controller hydraulic controller

Automatic hydraulic rising bollards video:

Hydraulic bollards package:

Security Hydraulic BollardsHydraulic Parking Bollards
