Optical Swing Turnstile Supermarket Entry Gates
Basic Info
Model No.: RS 116
Product Description

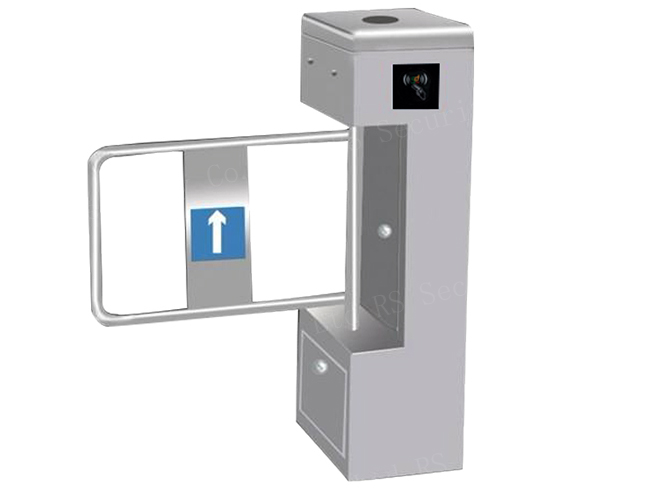

Optical Swing Turnstile Supermarket Entry Gates
Vertical swing barrier gate is an ideal pedestrian access management product. It well solved transit inconvenience of tripod turnstile and provide fast lane for passengers especially those with luggage and the disabled.It is mainly used in high-end residential building, store, supermarket and etc.
Technical Specification:
| 1 | Product Name | Automatic Swing Barrier Gates |
| 2 | Environmental Temperature | -20℃~ +70℃ |
| 3 | Operating Humidity | ≤95% |
| 4 | Operating voltage | 110V/220V AC 50Hz/60Hz |
| 5 | Operating power | 80 W |
| 6 | Active distance | 3 ~ 8 m |
| 7 | Waterproof class | IP54 |
| 8 | Interface | RS 485 |
| 9 | Passage width | 600-900 mm |
| 10 | Indicator light | LED |
| 11 | Material | 304 stainless steel |
| 12 | Thickness | 1.5 mm |
| 13 | Starting-up time | 3 s |
| 14 | Switching time | 1 s |
| 15 | System boot time | 3 s |
| 16 | Transit speed | 30-45 people/minute |
| 17 | Working life | 5 million |
| 18 | Dimension | 380*280*980mm |
| 19 | Direction | Unidirectional ,Bidirectional (optional) |
Features
1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.
2. Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.
3. Led Indicator Light : Red and green light prompt the passing information.
4. with a variety of operating modes you can choose, you can set a one-way or two-way control
5. Can integrated with RFID , magnetic card, bar code card, and other control equipment.
6. Fire safety function: When out of power , arm will automatically drop down , keep channel open
7. Scour protection function : The arm will be locked before received the open signal.
8. Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc
9. Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)
Optional Function
1.Stainless steel Material :316 stainless
2.Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish
3. The turnstile controller with counting function, LED digital display function
4. Sound, light alarm function: with trespassing, trailing alarm
5.Operation Motor : Brushed motor / Brushless DC motor / Servo motor

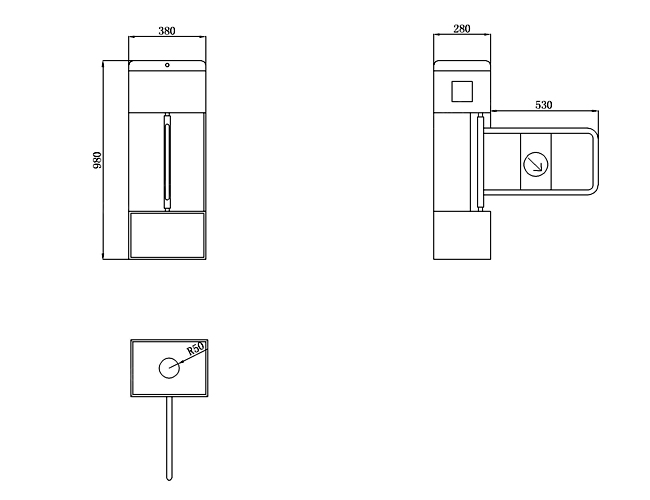

Design size:
Factory views:
Pakage:
Contact us if you need more details on Supermarket Entry Turnstile. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Supermarket Entry Turnstiles、Supermarket Entry Turnstile Gate. If these products fail to match your need, please contact us and we would like to provide relevant information.
