Home > Products > LESUN lighting > Energy Saving Recessed 1W Under Cabinet Light/Puck Light LC7261s

Energy Saving Recessed 1W Under Cabinet Light/Puck Light LC7261s

Basic Info

Model No.:  LC7261S

Product Description

Model NO.: LC7261S Color Temperature: Warm White, Natural White and Cool White Installation Mode: Recessed In Shade Direction: Up & Down Shade Type: Aluminum Certification: RoHS, CE Cct: 3000-6000k Cut Hole: Dia 25mm Height: 17mmh Surface Color: Silver/Black Chip: Osram Specification: CE and Rohs HS Code: 94054090 Power: 1W Emitting Color: Warm White, Natural White and Cool White IP Rating: IP20 Input Voltage: 2.8-3.2VDC/350mA LED Chips Brand: Osram Model: LC7261s Beam Angle: 45° Outsize: Dia 28mm Lumen: 80-100lm CRI: More Than 80 Trademark: LESUN Origin: China Energy saving recessed 1W under cabinet light/puck light LC7261S

led under cabinet light quick details:
Light source:High power LED
Power:1W
Color:3000-6000K
Color Rendering index:Ra>80
Cut Hole:dia 25mm
Beam Angle: 45D
Surface color:Silver
Input parameter:2.8-3.2Vdc/350mA
Lumen:80-100lm


led under cabinet light packing & details:

Packaging Detail: 50pcs/ctn
Delivery Detail: Delivery in 3-7 days upon payment received

1ed under cabinet light specifications

1.1W led under cabinet light
2. Cree/osram chip
3. Aluminum housing
4. CE certifactions
5. Rotating body
6. DIY product

led under cabinet light features:
 1) Adopt high brightness and low light decline led;
 2) Wide voltage and constant current design;
 3) Well-design of thermal structure;
 4) 60-80% energy saving than traditional lamps;
 5) Long lifetime, over 5,0000 hours 6) Warranty quality: 2 years
 7) Instant start, no flashing;
 8) Pro-environment, no UV or other radiation;
 9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body

Applications:

>Show window, jewelry store, Jewelry Counter, display counter
>Display cases, watches, exhibit hall, showroom, museum
>display shelves, hotels, lounges

Advantage:

1. With samll and exquisite appearance
2. Adjustable lamp bead, meet different angle of light requirements
3. Various styles, you can pick whichever freely
4. Long lifespan
Instructions:
1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.


Good servious:

1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information

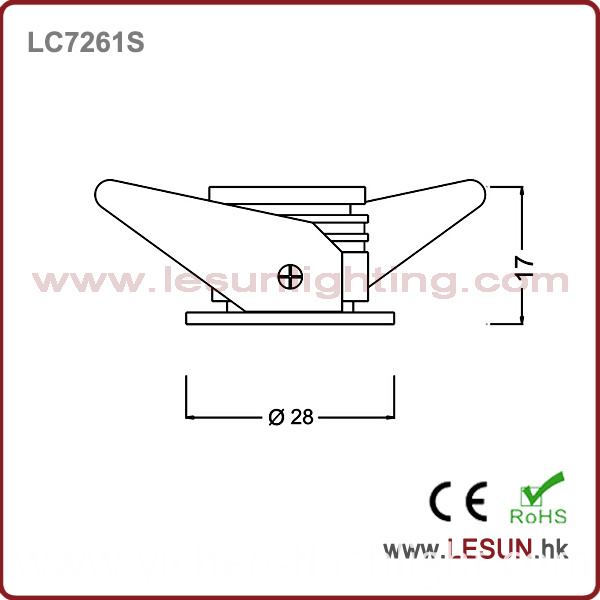

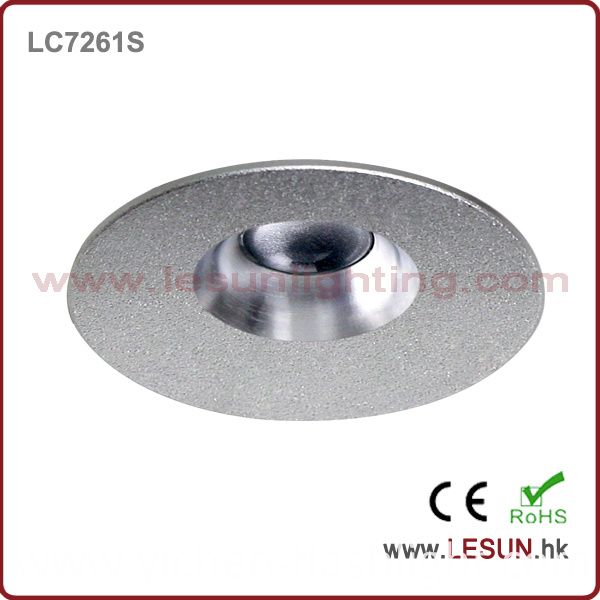

Product pictures:


Energy Saving Recessed 1W Under Cabinet Light/Puck Light LC7261s
Energy Saving Recessed 1W Under Cabinet Light/Puck Light LC7261s

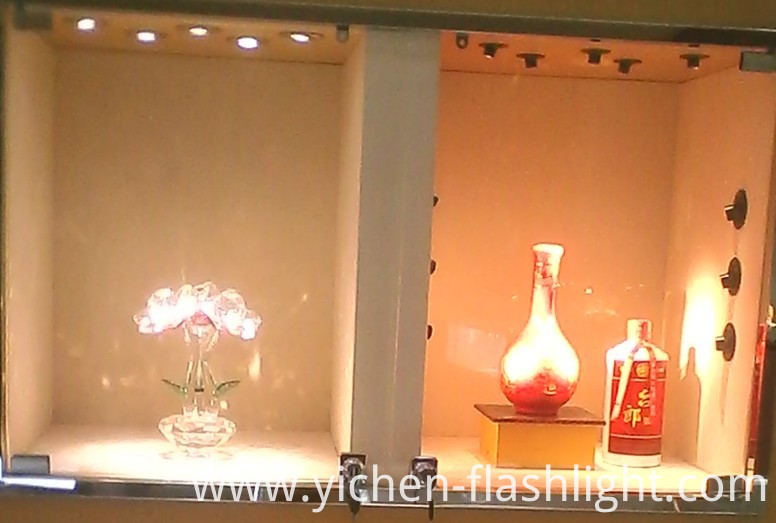

Application pictures:


Energy Saving Recessed 1W Under Cabinet Light/Puck Light LC7261s



  Model  LC7259
  Power   1W
  Light source high power led
  CCT 3000-6000K
  Beam angel     30°
  Height  32mmH
Cut hole dia 25mm
  Surface color silver/black

Contact us if you need more details on LED Cabinet. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Under Cabinet Light、LED Cabinet Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
