Home > Products > LESUN lighting > Customize 3.5W COB Jewelry Cabinet Light for Showcase LC7355s

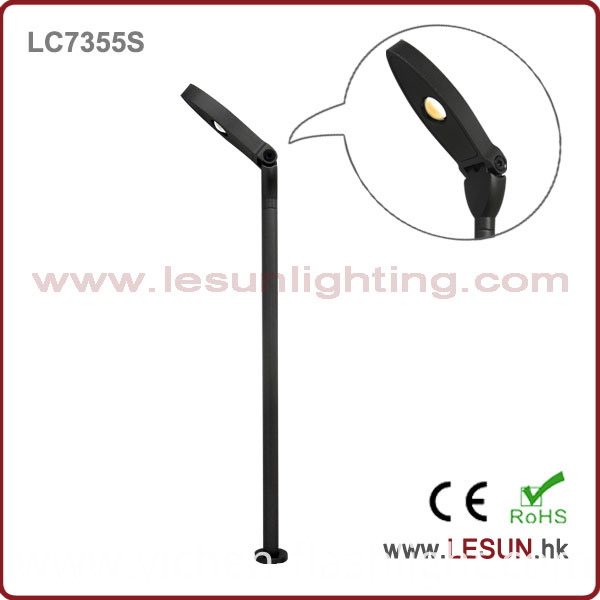

Customize 3.5W COB Jewelry Cabinet Light for Showcase LC7355s

Basic Info

Model No.:  LC7355S

Product Description

Model NO.: LC7355S Color Temperature: Warm White,Natural White and Cool White Installation Mode: Recessed In IP Rating: IP20 Input Voltage: 9V/350mA LED Chips Brand: CREE Model: LC7355s Beam Angle: 80° Installation Hole: Dia 13mm Lumen: 320-380lm Light Source: LED Trademark: LESUN Specification: CE and Rohs HS Code: 94054090 Power: 3.5W Emitting Color: Warm White,Natural White and Cool White Switch Type: Knob switch Shade Direction: Up & Down Shade Type: Aluminum Certification: RoHS, CE Cct: 3000-6000k(Warm White/Natural White/Cool White) Pole Height: 155mm(Any Height We Can Made as Require) Input Parameter: 9VDC/350mA Surface Color: Black Chip: CREE Transport Package: Natural Packing, Lesun Package or Carton Package Origin: China Customize 3.5W COB Jewelry Cabinet Light for Showcase LC7355s




Light source: COB (Cree)
Power: 3.5W
Height: 155mm
Installation Hole:Dia.13mm
Color:3000K-6000K
Color rendering index: Ra>80
Beam Angle: 80°
Input parameter:9Vdc/350mA
Lumen:320-380lm
 Surface color:Black


cabinet led light packing & details:

Packaging Detail: 50pcs/ctn
Delivery Detail: Delivery in 3-7 days upon payment received

cabinet led light specifications

1.cabinet led light
2. Cree/osram chip
3. Aluminum housing
4. CE certifactions
5. Rotating body
6. DIY product

cabinet led light description

1. Adjustable type
2. Order LED controller separately
3. Warranty 2 years
4. Cool light output(no UV or heat energy)
5. Easy plug connector are supplied if requested
6. Very long operating life(up to 50, 000 hours)
7. Better energy efficiency over incandescent and most halogen lights
8. Low voltage DC operation

Applications:

>Show window, jewelry store, Jewelry Counter, display counter
>Display cases, watches, exhibit hall, showroom, museum
>display shelves, hotels, lounges

Advantage:

1. With samll and exquisite appearance
2. Adjustable lamp bead, meet different angle of light requirements
3. Various styles, you can pick whichever freely
4. Long lifespan
Instructions:
1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED Driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.

Customize 3.5W COB Jewelry Cabinet Light for Showcase LC7355sCustomize 3.5W COB Jewelry Cabinet Light for Showcase LC7355s

Good servious:
1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information



Customize 3.5W COB Jewelry Cabinet Light for Showcase LC7355s




  Model
LC7355S
  Power    3.5W
  Light source high power led
  CCT 3000-6000K(warm white/natural white/cool white)
  Beam angel    80°
   Pole Height  155mm(OEM height)
  Installation hole dia 13mm
  Surface color black
  Lumen 320-380lm

Contact us if you need more details on LED Cabinet Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cabinet LED Lights、Cabinet Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
  • Rotating 3W LED Jewelry Cabinet Light LC7328

    Model NO.: LC7328 Certification: CE, RoHS Power Source: AC Electric Current Type: AC Input Voltage: 100-240V LED Chips: Osram Model: LC7328 Cct: 3000-6000k Beam Angle: 30° Height: 300mm(Any Height We Can Made as Require) Installation Hole: Dia 8mm Input Parameter: 8.5-10VDC/350mA Lumen: 220-300lm Surface Color: Silver/Black...

  • 2016 New Issue 2W LED Under Cabinet Light for Jewelry Lighting

    Model NO.: LC7355H Shade Direction: Up & Down Input Voltage: 5.6-6.5VDC/350mA Shade Type: Aluminum LED Chips Brand: Osram Certification: RoHS, EMC, CE Model: LC7355h CCT: 3000-6000k Beam Angle: 60° Height: 300mm(Tailor Made) Installation Hole: Dia 10mm Pole Diameter: Dia 8mm Lumen: 160-180lm Surface Color:...
