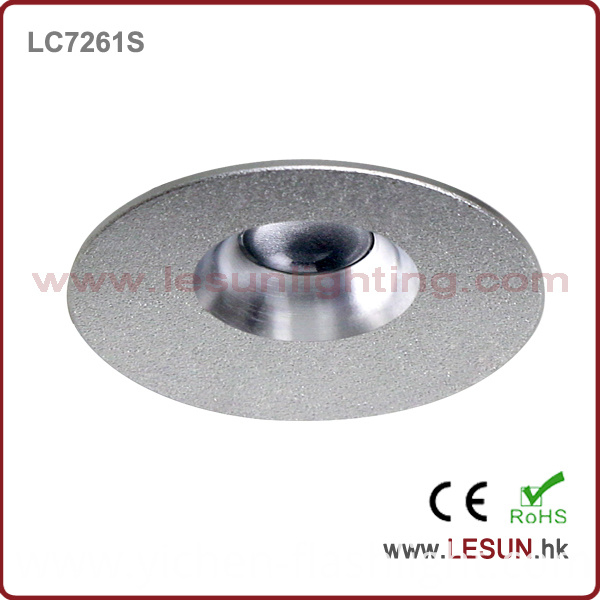

1W Recessed LED Cabinet Ceiling Light LC7261s

Productivity:
1000PCS/Day
Place of Origin:
China
Supply Ability:
1000PCS/Day
Certificate:
RoHS, CE
  • Ms. Amanda Ye Leave Messages

Basic Info

Model No.:  LC7261S

Product Description

Model NO.: LC7261S Color Temperature: Warm White,Natural White and Cool White Installation Mode: Recessed In Shade Direction: Up & Down Shade Type: Aluminum Certification: RoHS, CE Cct: 3000-6000k Cut Hole: Dia 25mm Height: 17mm Surface Color: Silver/Black Chip: Osram Specification: CE and Rohs HS Code: 94054090 Power: 1W Emitting Color: Warm White ,Natural White and Cool White IP Rating: IP20 Input Voltage: 2.8-3.2VDC/350mA LED Chips Brand: Osram Model: LC7261s Beam Angle: 45° Outsize: Dia 28mm Lumen: 80-100lm CRI: More Than 80 Trademark: LESUN Origin: China 1W Recessed led cabinet ceiling light LC7261S

Light source:High power LED(Osram) Power:1W Color:3000-6000K Color Rendering index:Ra>80 Cut Hole:Ø25mm Beam Angle: 45° Surface color:Silver
Lumen:80-100lm Input parameter:2.8-3.2Vdc/700mA


Led cabinet light packing & details:

Packaging Detail: 50pcs/ctn
Delivery Detail: Delivery in 3-7 days upon payment received

1W led cabinet light specifications

1.1W led cabinet light
2. Cree/osram chip
3. Aluminum housing
4. CE certifactions
5. Rotating body
6. DIY product

Led cabinet light features:
1) Adopt high brightness and low light decline led;
2) Wide voltage and constant current design;
3) Well-design of thermal structure;
4) 60-80% energy saving than traditional lamps;
5) Long lifetime, over 5, 0000 hours 6) Warranty quality: 2 years
7) Instant start, no flashing;
8) Pro-environment, no UV or other radiation;
9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body

Applications:

>Show window, jewelry store, Jewelry Counter, display counter
>Display cases, watches, exhibit hall, showroom, museum
>display shelves, hotels, lounges

1W Recessed LED Cabinet Ceiling Light LC7261s

Advantage:

1. With samll and exquisite appearance
2. Adjustable lamp bead, meet different angle of light requirements
3. Various styles, you can pick whichever freely
4. Long lifespan
Instructions:
1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.

1W Recessed LED Cabinet Ceiling Light LC7261s

Good servious:

1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information

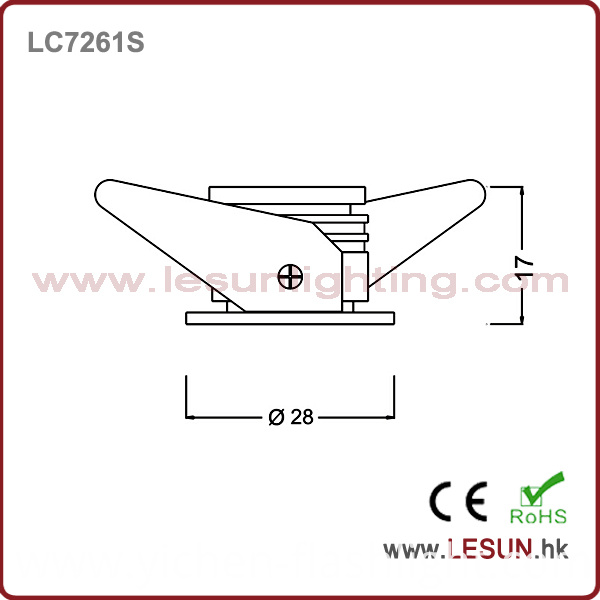

  Model  LC7261S
  Power   1W
  Light source high power led
  CCT 3000-6000K
  Beam angel          45°
  Height  dia 17mm
Cut hole dia 25mm
  Surface color silver/black
