OEM Product 3W LED Under Cabinet Light for Jewelry Store LC7355c-N-3

Basic Info

Model No.:  LC7355C-N-3

Product Description

Model NO.: LC7355C-N-3 Diffuser: Polycarbonate Base Material: Aluminum Life: 50000h Certification: CE, RoHS Electric Current Type: AC LED Chips: Osram Cct: 3000-6000k(Warm White/Natural White/Cool White) Pole Height: 280mm(Any Height We Can Made as Require) Input Parameter: 8.5-10VDC/350mA Surface Color: Silver/Black Chip: Osram Specification: CE and Rohs HS Code: 94054090 Emitting Color: Warm White,Natural White and Cool White Power: 3W Usage: Jewelry Shop, Watches Store,Cosmetic Display Case IP Rating: IP20 Power Source: AC Input Voltage: 8.5-10VDC/350mA Model: LC7355c-N-3 Beam Angle: 60° Installation Hole: Dia 6mm Lumen: 220-300lm Light Source: LED Trademark: LESUN Origin: China OEM product 3W led under cabinet light for jewelry store LC7355C-N-3

  Light source: LED (Osram) Power: 3*1W  Pole Height: 280mmH(we can make as request) Installation Hole:Dia.6mm Color:3000K-6000K Color rendering index: Ra>80 Beam Angle: 60°
 Input parameter:8.5-10Vd/350mA Lumen:220-300lm
Surface color:Silver/Black Excluding the driver

led under cabinet light packing & details:

Packaging Detail: 50pcs/ctn
Delivery Detail: Delivery in 3-7 days upon payment received

led under cabinet light specifications

1.led under cabinet light
2. Cree/osram chip
3. Aluminum housing
4. CE certifactions
5. Rotating body
6. DIY product

led under cabinet light description

1. Adjustable type
2. Order LED controller separately
3. Warranty 2 years
4. Cool light output(no UV or heat energy)
5. Easy plug connector are supplied if requested
6. Very long operating life(up to 50, 000 hours)
7. Better energy efficiency over incandescent and most halogen lights
8. Low voltage DC operation


>Show window, jewelry store, Jewelry Counter, display counter
>Display cases, watches, exhibit hall, showroom, museum
>display shelves, hotels, lounges


1. With samll and exquisite appearance
2. Adjustable lamp bead, meet different angle of light requirements
3. Various styles, you can pick whichever freely
4. Long lifespan
1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED Driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.

Good servious:
1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information

Product pictures:

OEM Product 3W LED Under Cabinet Light for Jewelry Store LC7355c-N-3
OEM Product 3W LED Under Cabinet Light for Jewelry Store LC7355c-N-3
Product pictures:

OEM Product 3W LED Under Cabinet Light for Jewelry Store LC7355c-N-3

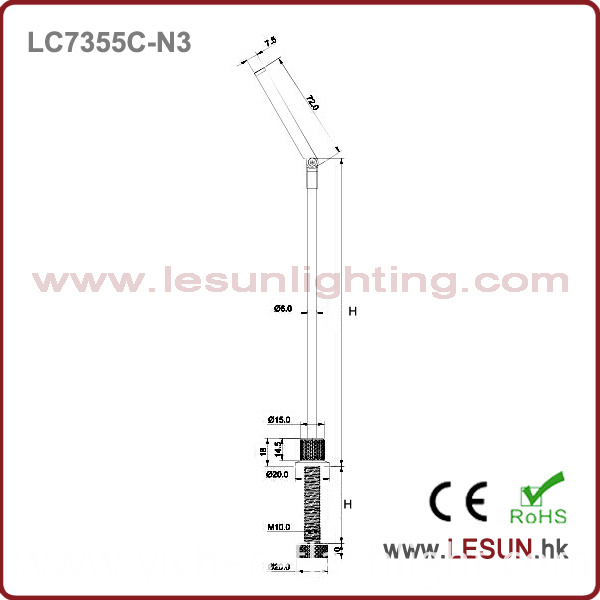

  Model  LC7355C-N-3
  Power         3*1W
  Light source high power led
  CCT 3000-6000K(warm white/natural white/cool white)
  Beam angel         60°
   Pole Height  280mm
  Installation hole dia 6mm
  Surface color silver/black
  Lumen 220-300lm

Contact us if you need more details on LED Cabinet. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED Under Cabinet Light、LED Jewelry Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
