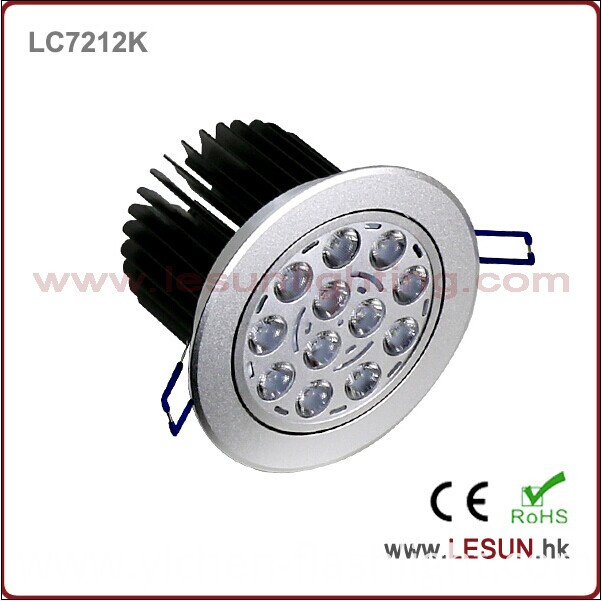

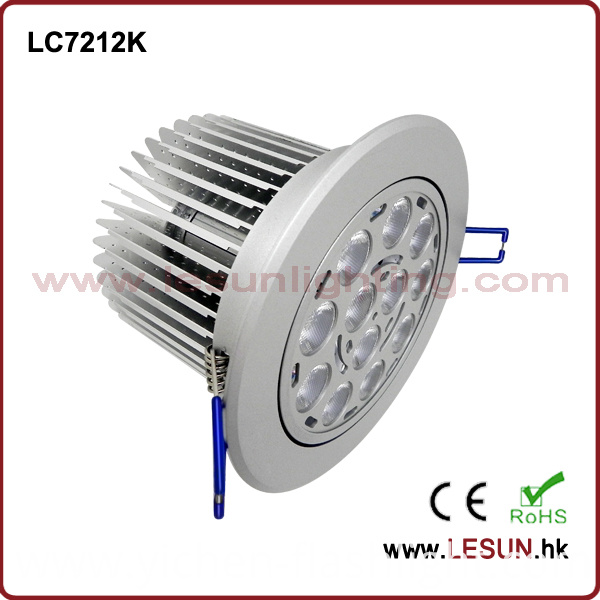

Model No.: LC7212K
Light source:High Power LED Power:12*3W Color:3000-6000K Color Rendering index:Ra>80 Beam Angle:15°/25°/45° Cut Hole:120mm Surface color:Silver/Black/White Lumen:1800-2500lm Input parameter:34-38Vdc/Max 700mA
matched LED Driver
> High brightness LED Ceiling Light
> Adjustable type
> Recess mounted

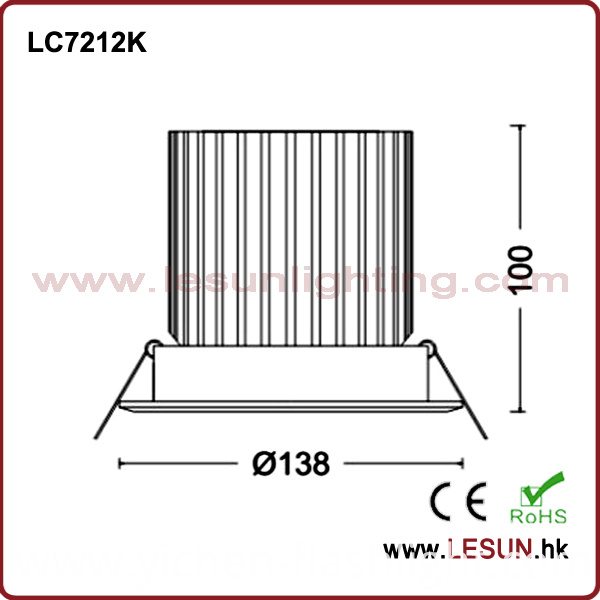

> Diameter: 120mm
> With LED lens, which supply the 15 or 30degree angle beam light
>Various LED color are available(warm white, cool white)
> Cool operating temperature
> Order LED controller separately
> Easy plug connector are supplied if requested
>Office buildings, Supermarkets, Emporiums
>Hotels and restaurants, Decorating lamp
>Running lamp, Exhibition hall, Building outline
>Parks and palace decoration
30W recessed led ceiling light packing & details:
Packing detail: Carton box
Delivery detail: Within 3-5 working days after receive the payment
30W recessed led ceiling light features:
1) Adopt high brightness and low light decline led;
2) Wide voltage and constant current design;
3) Well-design of thermal structure;
4) 60-80% energy saving than traditional lamps;
5) Long lifetime, over 5, 0000 hours 6) Warranty quality: 2 years
7) Instant start, no flashing;
8) Pro-environment, no UV or other radiation;
9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body
1. Living room, bedroom, kitchen, washroom;
2. School, university, hospital, hotel;
3. Conference, meeting room, show room, showcase;
4. Commercial complexes;
5. Factory, plant, warehouse, office;
6. Supermarket, department store
7. Jewelry store, hotel and fashion shop etc
1. High light transmittance lens, wonderful show effect
2. Perfect design with full application of air convection principle, good heat dissipation
3. Exquisite frosted surface, long durable
4. Competive price, good looking
5. Enviroment protecting
6. Energy saving
1. Lamps input is a low-voltage DC, please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2. If you want to add or reduce lamp, it must use series connection.
3. When installing make sure the power is off. Before connecting lamp and LED driver, collide the two lines to release spare power. Only after this procedure, then to electrify.
4. Don't pull the line crudely.
1. Good after-sales service, warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information
|Light source||high power led|
|CCT||3000-6000K(warm white/natual white/cool white)|
|Beam angel||25° / 45° / 15°|
|Cut hole||dia 120mm|
Contact us if you need more details on LED Down Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Recessed LED Downlight、Recessed LED Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
