Model No.: ED5R-5
1. 6 years OEM & ODM Factory
2.ANSL/NEMA FL1-2009 Standard
3. CE, ROSH, FCC Approved

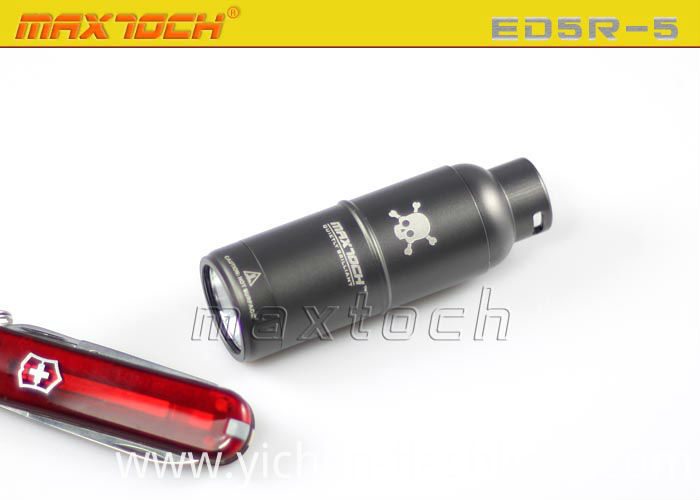

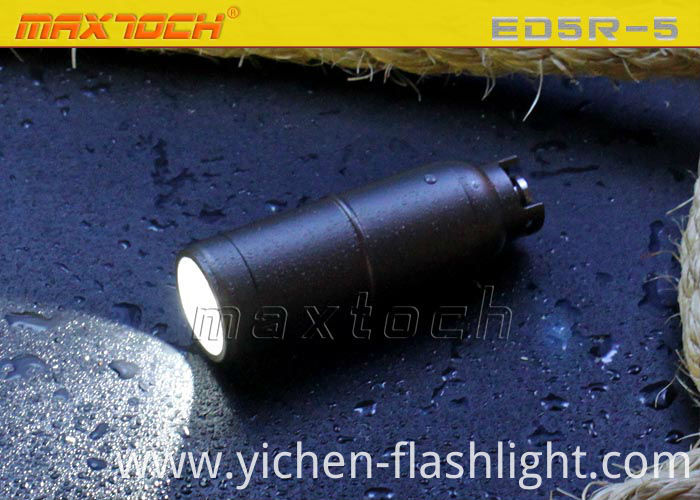

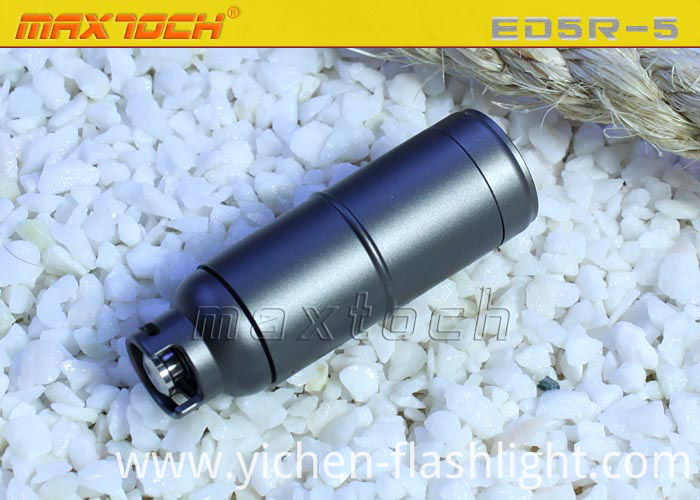

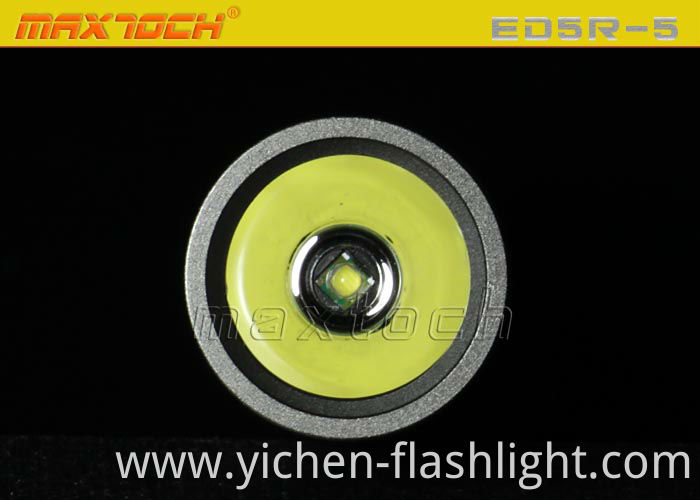

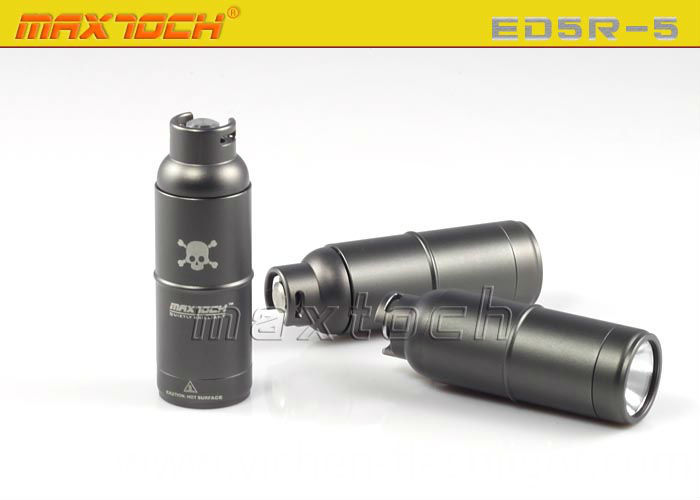

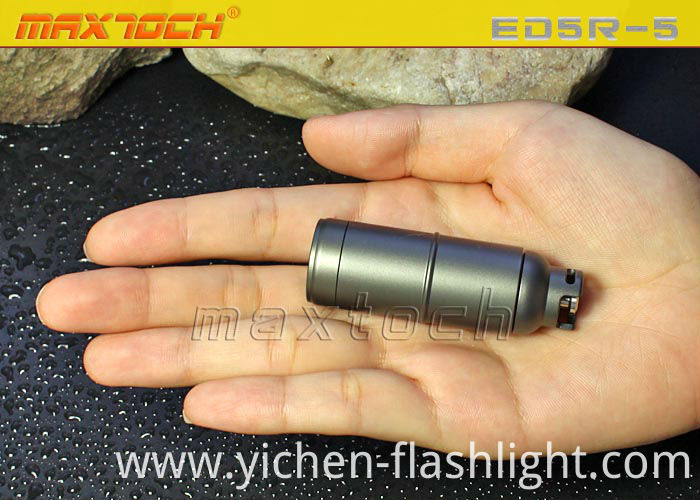

Maxtoch ED5R-5 XP-G R5 Mini Solar Power LED Flashlight Features: *LED Type: CREE XP-G R5 *Max output: 320LM *Beam: Micro Orange Peel Reflector for flawless beam
*Lens: Anti-shattering ultra clear lens, anti-scratching and anti-slip *Finish: HA ll *Waterproof: IPX7 *Modes: Min-Mid-Max *Battery: 1*CR123 *Circuit efficiency: 93% *Size: L 66 mm (2.60'') *D22mm (0.87'')
Operation: *With the battery correctly inserted, screw the tail cap onto the body fully. Tighten head to turn it on. Turn head counter clockwise (loosen) to turn off light
*When the flashlight turn off(Loosen the tail), Press the tail cap pushbutton switch to choose modes. Press the tail cap for 0.5 second on the mode which you need,Then tighten the tail, the flashlight will enter the mode and turn on.
*Remove tail, insert the batteries with the positive ends toward the head of the light, replace the tail. Parameters:
|Max Output ( lm )||320||Runtime ( H )||1|
|Distance ( m )||75||Battery||1 * CR123|
|Weight ( g )||35||Size ( mm )||66 * 22|
*Max output of 320 lumens for approximately 1 Hour
*Mid output of 70 lumens for approximately 5 Hours
*Min output of 5 lumens for approximately 60 Hours
Note:Stated brightness and runtime figures are based on tests using 1PC CR123 dry battery under laboratory conditions. Variances in these figures will occur depending on batteries used and individual usage habits. Contact us if you need more details on Mini Solar Power Led Flashlight. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Xp-g R5 Mini、Mini Solar Power Led. If these products fail to match your need, please contact us and we would like to provide relevant information.
